HORIZONTAL & VERTICAL SUBMERSIBER PUMP
Model - WW-MVH150
SUBMERSIBER Pump
The new series Horizontal and vertical SUBMERSIBER Pump is designed to meet your pressure boosting needs. The stainless steel construction offers high perfomance in a wide variety of applications. Continuous and reliable SUBMERSIBER Pump operation with high efficiency and low energy consumption. Long life span landscape pump.
Technical Specification
-
Liquid Temperature : 0 ~ 40°C / +32°F to 104°F
-
Hp range : 1/5 to 1HP / 150w~750w
-
pH : 6~8
-
Protection Class : IP68
-
Max immersion depth : 8m
-
Max Head : 6.5 ~ 14m
-
Max Flow : 15m3/h ~ 31.53/h
-
Solid Pass : 6mm
Able to pump at shallow water
Min water lvl : 12.5cm
Built in strainer, can be placed horizontal or vertical
Able to locate at any pump sump.
Applications
-
Water Pressure Boosting
-
Water Transfer
-
Turf Irrigation
-
Residential Lawn Sprinkler systems
-
Wash Down Application
-
Commercial Water Features
-

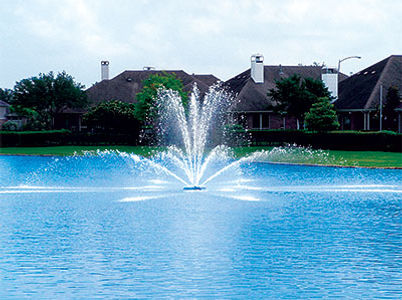

Fountain
-
Cisterns
Low Maintenance & Energy Saving
Over Heating Protection
Less Noise & Anti-Rust pump shell
PERFORMANCE TABLE
Model | Hz | Output | Outlet | Solid Pass | Max Flow (Lpm) | Max Head (m) | Dimension (L x W x H ) mm | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
WW-MVH150 | 50 | 1/5, 150W | 50mm / 2 inch | 6 mm Dia. | 250 | 6.5 | 177 x 162 x 379 | 7 |
WW-MVH400 | 50 | 1/2, 400W | 50mm / 2 inch | 6 mm Dia. | 367 | 11 | 177 x 162 x 399 | 8 |
WW-MVH750 | 50 | 1, 750W | 50mm / 2 inch | 6 mm Dia. | 525 | 14 | 177 x 162 x 414 | 11 |
